Base material of Glass Calibration Plate is made of Neoseram(NEG). It has a very low thermal expansion coefficient which is almost equivalent to synthetic silica. Precise pattern is printed on white glass, therefore its contrast seems sharper than the current transparent ones. The calibration image taken by a camera can be used to calibrate the measurement and magnification of optical system, as well as correct lenses distortion etc.
As for transparent ones, for example, 10mm/1000division grid type, can be easily used as a resolving chart. Base material of transparent type is made of synthetic silica or B-270(SCHOTT).
Customized patterns are also available. Please contact with us for details first.

Specifications
•	Material : Neoseram N-11 (Heat resisting glass, up to 700oC
•	Size : 200X200mm (max.)
•	Thickness : 35mm
•	Accuracy : 50mm (+-0.002mm)200mm (+-0.01mm)
•	Minimum Line Space : 2 μm / 2 μm / (L/S)

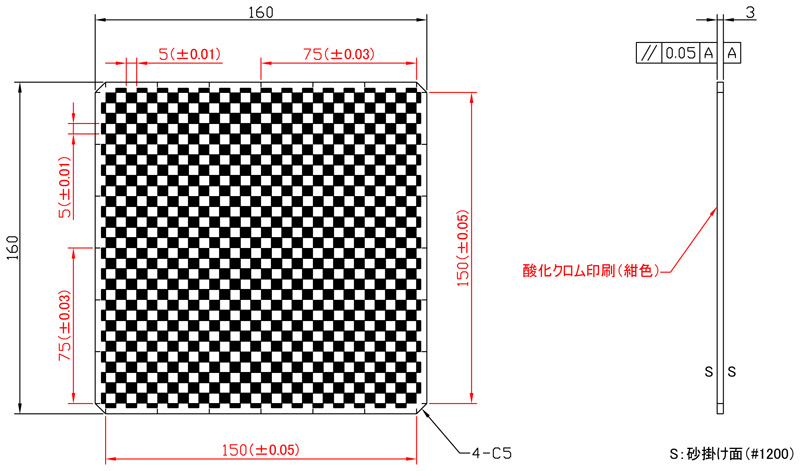

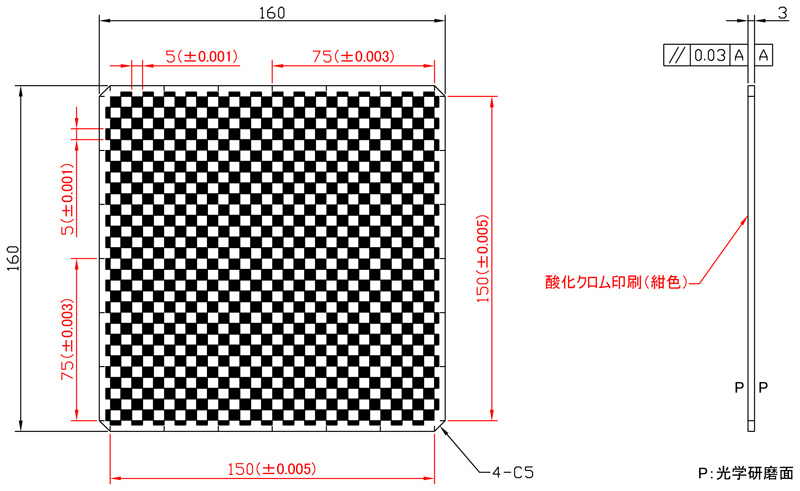

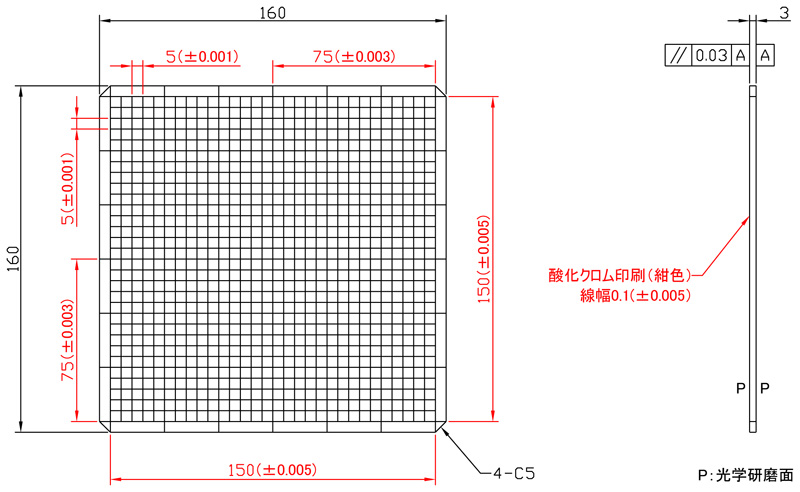

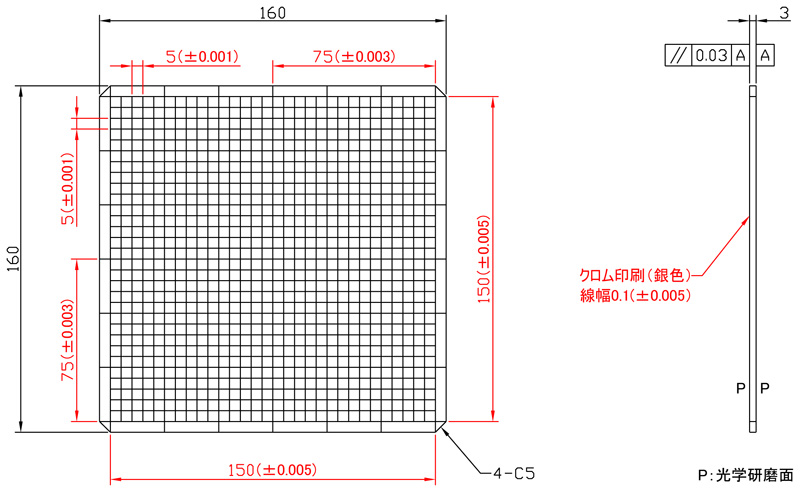

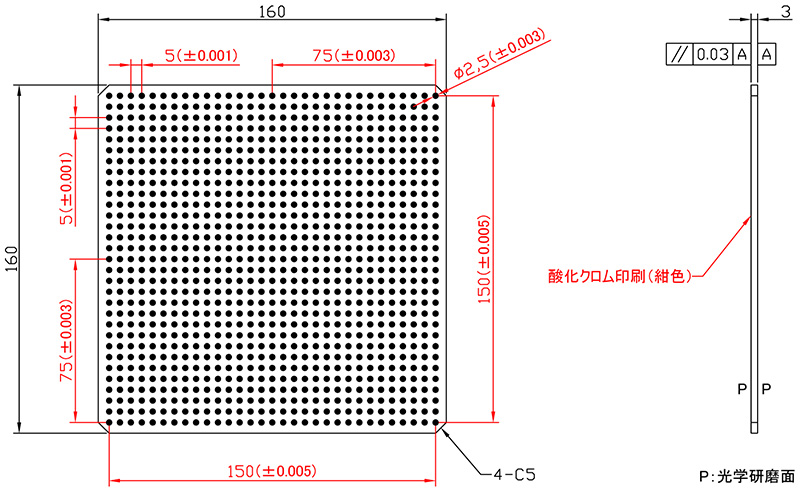

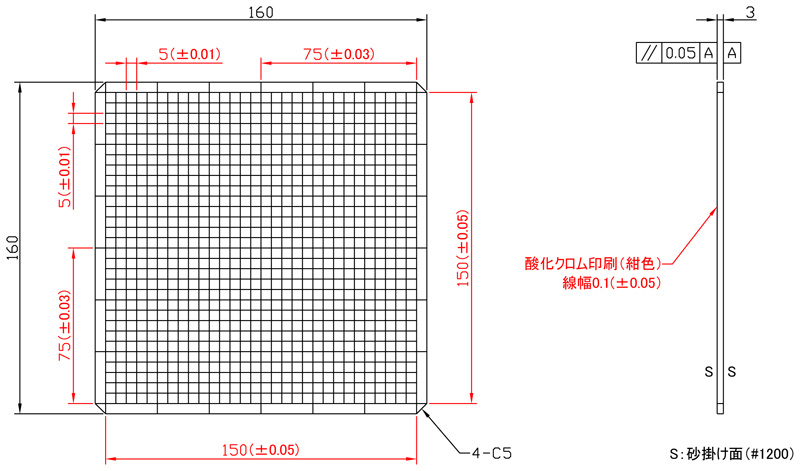

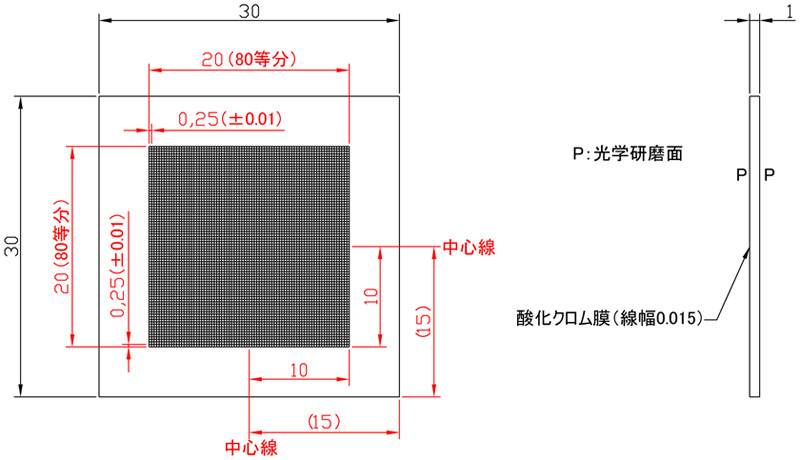

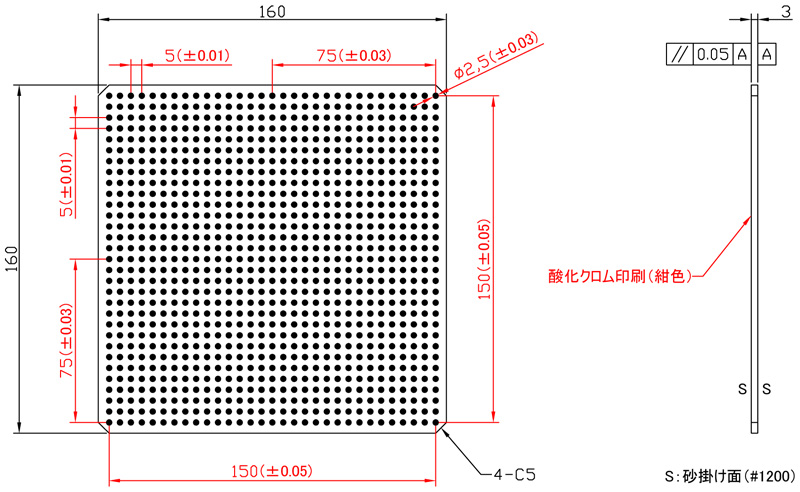

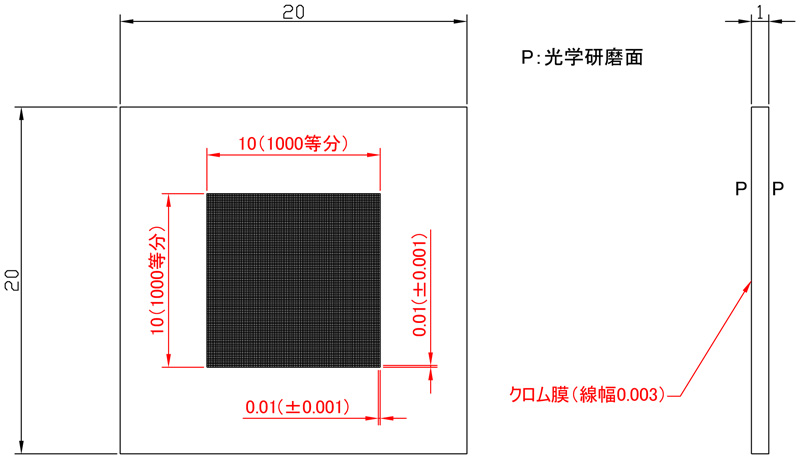

Please click Cat. No. for a detailed drawing.

Cat. No.	Material	Type	Pattern (mm)	Size (mm)	Price
CBG01-150RL	White, Neoseram	Reflection, Luster	150 x 150	160 x 160	JPY 100,000
CBG01-150RM	White, Neoseram	Reflection, Matt	150 x 150	160 x 160	JPY 100,000
CBG01-150T	Fused Silica	Transmission (transparent)	150 x 150	160 x 160	JPY 100,000
CBG01-50RL	White, Neoseram	Reflection, Luster	50 x 50 *	60 x 60	JPY 50,000
CBG01-50RM	White, Neoseram	Reflection, Matt	50 x 50 *	60 x 60	JPY 50,000
CBG01-50T	Fused Silica	Transmission (transparent)	50 x 50 *	60 x 60	JPY 50,000
CBG04-20RL	White, Neoseram	Reflection, Luster	20 x 20	30 x 30	JPY 50,000
CBG02-10T	B270	Transmission (transparent)	10 x 10	20 x 20	JPY 20,000
CBC01-150RL	White, Neoseram	Reflection, Luster	150 x 150	160 x 160	JPY 100,000
CBC01-150RM	White, Neoseram	Reflection, Matt	150 x 150	160 x 160	JPY 100,000
CBC01-150T	Fused Silica	Transmission (transparent)	150 x 150	160 x 160	JPY 100,000
CBC01-50RL	White, Neoseram	Reflection, Luster	50 x 50 *	60 x 60	JPY 50,000
CBC01-50RM	White, Neoseram	Reflection, Matt	50 x 50 *	60 x 60	JPY 50,000
CBC01-50T	Fused Silica	Transmission (transparent)	50 x 50 *	60 x 60	JPY 50,000
CBD01-150RL	White, Neoseram	Reflection, Luster	150 x 150	160 x 160	JPY 100,000
CBD01-150RM	White, Neoseram	Reflection, Matt	150 x 150	160 x 160	JPY 100,000
CCBD01-150T	Fused Silica	Transmission (transparent)	150 x 150	160 x 160	JPY 100,000

* Since 50x50 plate is made from a divided 150x150, its pattern is exactly same as the drawing, but with full sized pattern and the size is different from the drawing.
** Please contact with us for customized sizes and patterns.

CBG01		CBG02
CBC01		CBD01
