Objective Micrometer
| Cat. No. | Length (mm) Accuracy |
Division | Pitch (mm) Accuracy |
Specification | Scale Plate Thickness (mm) |
Price | JQA Inspection Fee* |
| OB2001 | 1.0 (  0.02) |
100 | 0.01 ( 0.002) |
Transmitted type | 1.0 | JPY 6,000 | JPY 45,000 |
| OB2002 | 1.0 ( 0.02) |
100 | 0.01 ( 0.002) |
Reflected type | 3.0 | JPY 10,000 | JPY 45,000 |
| OB2003 | 2.0 ( 0.04) |
200 | 0.01 ( 0.002) |
Transmitted type | 1.0 | JPY 8,000 | JPY 45,000 |
| OB2004 | 2.0 ( 0.04) |
200 | 0.01 ( 0.002) |
Reflected type | 3.0 | JPY 12,000 | JPY 45,000 |
| OB2005 | 0.04inch ( 0.0008inch) |
40 | 0.001inch ( 0.00008inch) |
Transmitted type | 1.0 | JPY 6,000 | JPY 45,000 |
| OB2006 | 0.04inch ( 0.0008inch) |
40 | 0.001inch ( 0.00008inch) |
Reflected type | 3.0 | JPY 10,000 | JPY 45,000 |
| OB2007 | 1.0 ( 0.02) |
200 | 0.005 ( 0.001) |
Transmitted type | 1.0 | JPY 14,000 | JPY 45,000 |
| OB2008 | 1.0 ( 0.02) |
200 | 0.005 ( 0.001) |
Reflected type | 3.0 | JPY 20,000 | JPY 45,000 |
| OB2009 | 5.0 ( 0.02) |
500 | 0.01 ( 0.002) |
Transmitted type | 1.0 | JPY 20,000 | JPY 45,000 |
| OB2010 | 5.0 ( 0.08) |
500 | 0.01 ( 0.002) |
Reflected type | 3.0 | JPY 30,000 | JPY 45,000 |
| OB2015 | 1.0 ( 0.02) |
500 | 0.002 ( 0.001) |
Transmitted type | 1.0 | JPY 70,000 | JPY 45,000 |
| OB2016 | 1.0 ( 0.02) |
500 | 0.002 ( 0.001) |
Reflected type | 3.0 | JPY 80,000 | JPY 45,000 |
 |
 |
|
| 1mm 100div. | 2mm 200div. | |
 |
||
| 0.04inch 40div. |
| Cat. No. | Length (mm) Accuracy |
Division | Minimum Square (mm) Accuracy |
Specification | Scale Plate Thickness (mm) |
Price | JQA Inspection Fee* |
| OB2011 | 0.2 ( 0.01) |
20X20 | 0.01X0.01 ( 0.002) |
Transmitted type |
1.0 | JPY 7,000 | JPY 45,000 |
| OB2013 | 0.2 ( 0.01) |
20X20 | 0.01X0.01 ( 0.002) |
Reflected type |
3.0 | JPY 12,000 | JPY 45,000 |
| OB2012 | 10.0 ( 0.02) |
100X100 | 0.1X0.1 ( 0.02) |
Transmitted type |
1.0 | JPY 7,000 | JPY 45,000 |
| OB2014 | 0.04 | 20X20 | 0.002X0.002 | Transmitted type |
1.0 | JPY 45,000 | JPY 45,000 |
 |
 |
 |
|
| 0.2mm 20X20 div. | OB2014 Drawing | OB2014 Central Part |
| Cat. No. | Diameter of circle | Pitch | Specification | Scale Plate Thickness (mm) |
Price | JQA Inspection Fee* |
| OB2021 | 0.1ø 1.0ø |
0.05 ( 0.002) |
Transmitted type | 1.0 | JPY 8,000 | JPY 45,000 |
 |
| 0.1ø1.0ø |

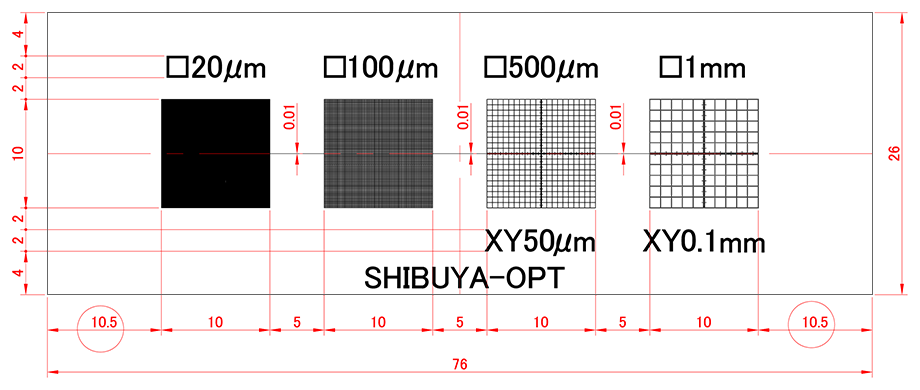

Grid Scale for Stereomicroscope
Four kinds of high accuracy grid scale pattern gathered on one piece of micrometer. It is very a functionable item for stereomicroscope, epi-illumination microscopy, and also for calibration.
Cat. No.: OBJT001
Price: JPY 15,000.- JQA Inspection Fee*: JPY 45,000.-
Material: SCHOTT NEXTREMA® Color: Opaque White Material Data Sheet
Plate Thickness: 1.0mm Reflection Type

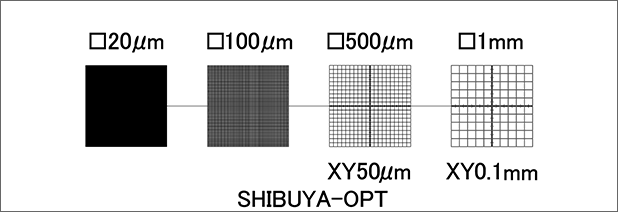

Specifications of four patterns
| |
□20μm | □100μm | □500μm | 1mm |
|---|---|---|---|---|
| Grid Size(mm) | □0.02(±0.002) | □0.10(±0.005) | □0.50(±0.01) | □1.00(±0.01) |
| Grid Division | 500x500 | 100x100 | 20x20 | 10x10 |
| Cross Division | - | - | 200 | 100 |
| |

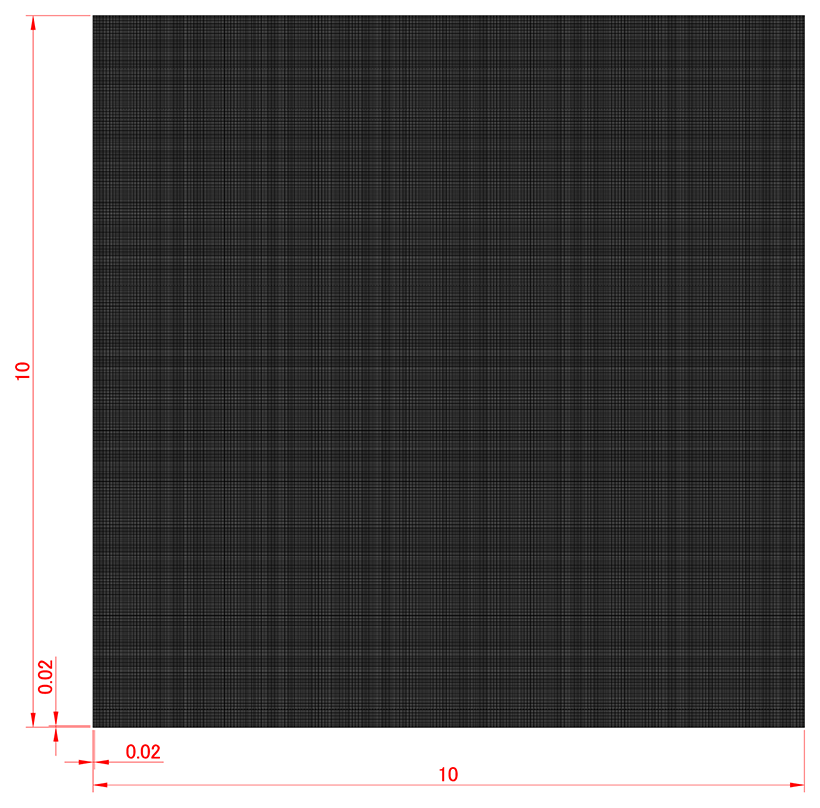

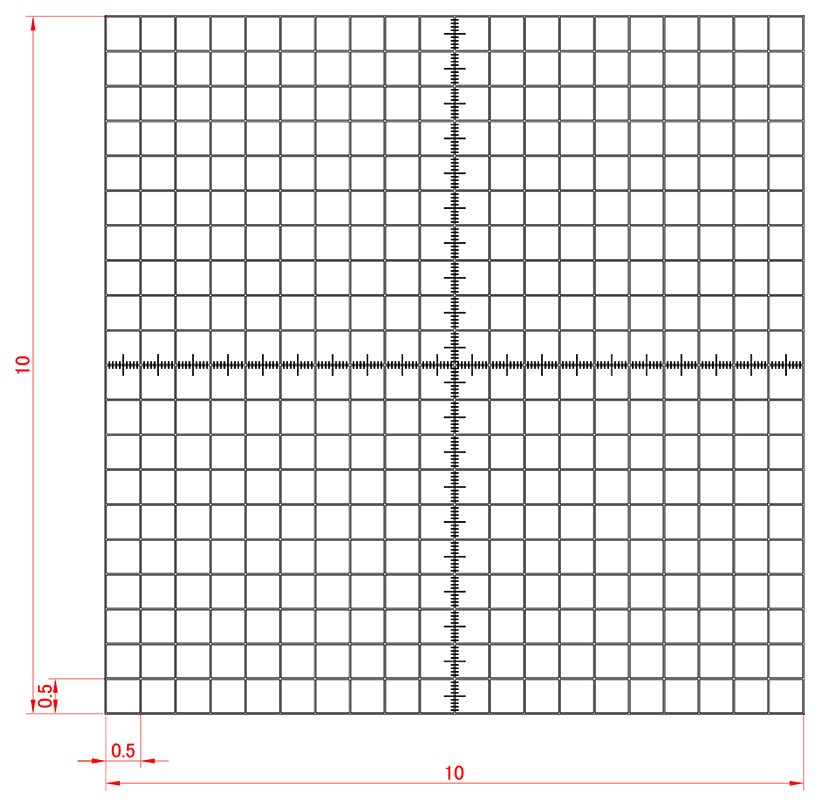

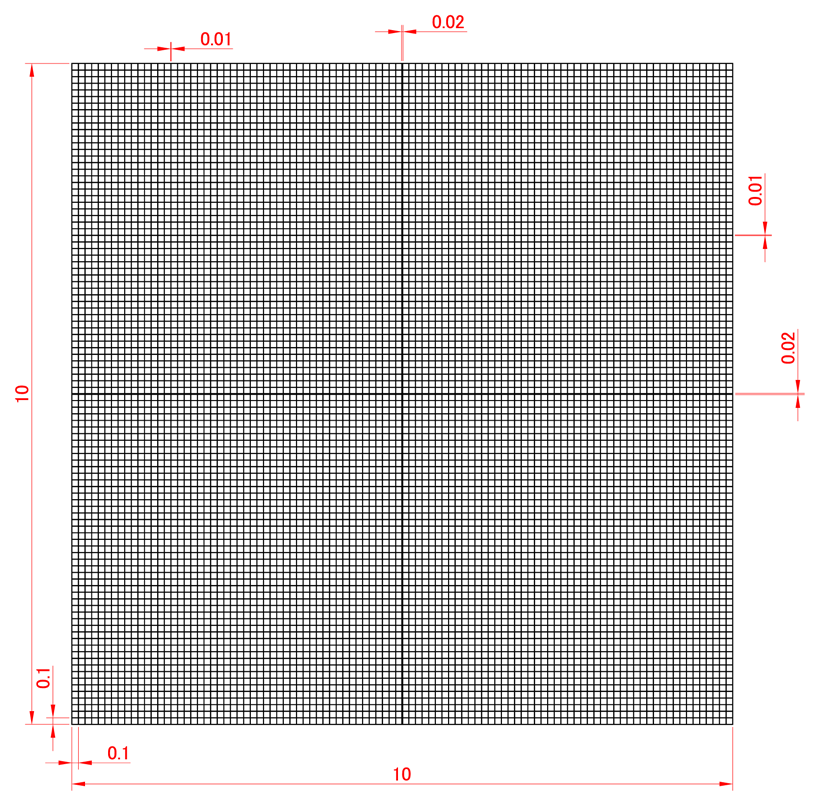

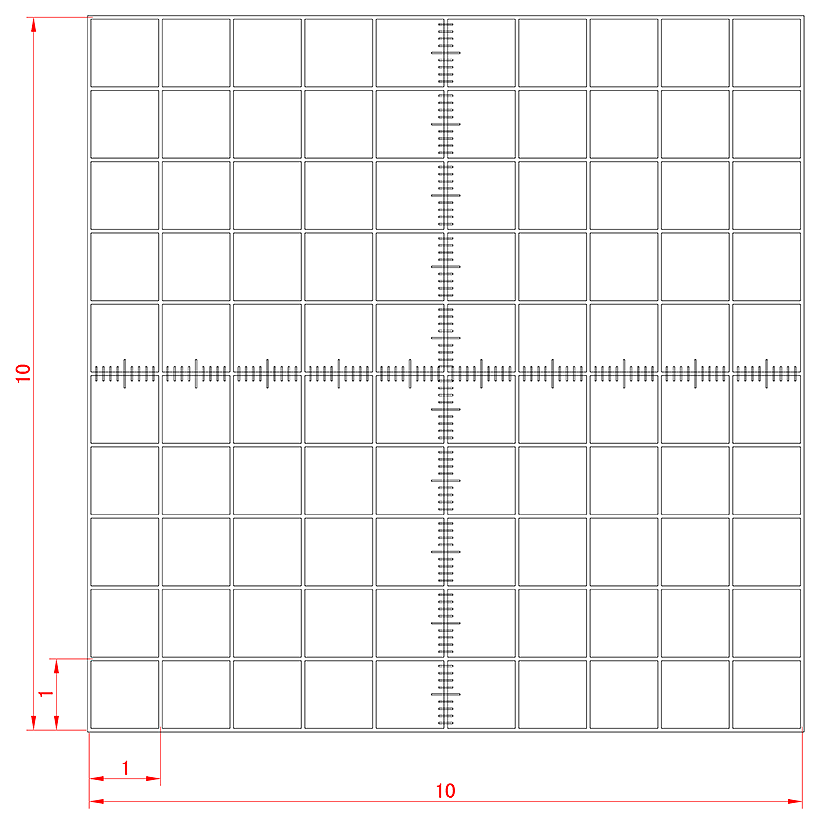

Drawing | Drawing | Drawing | Drawing |
| |

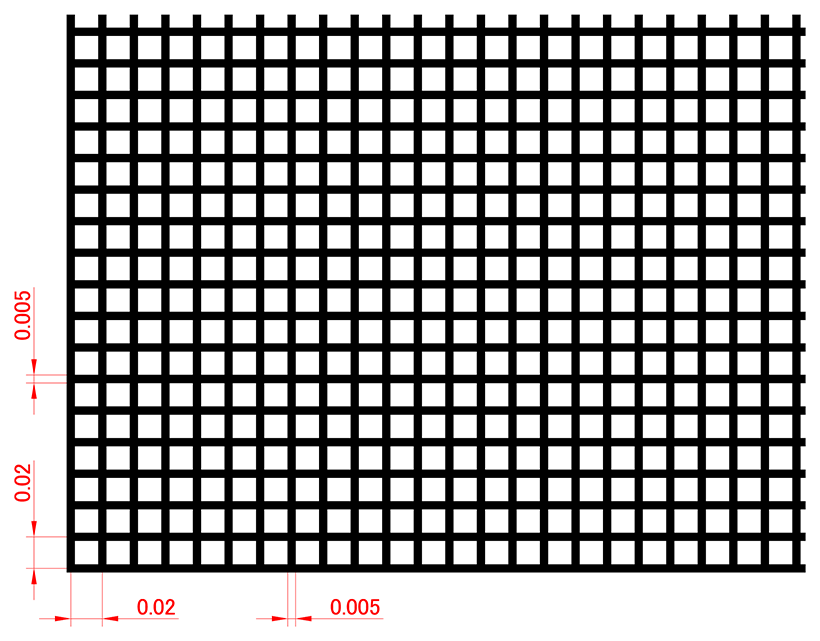

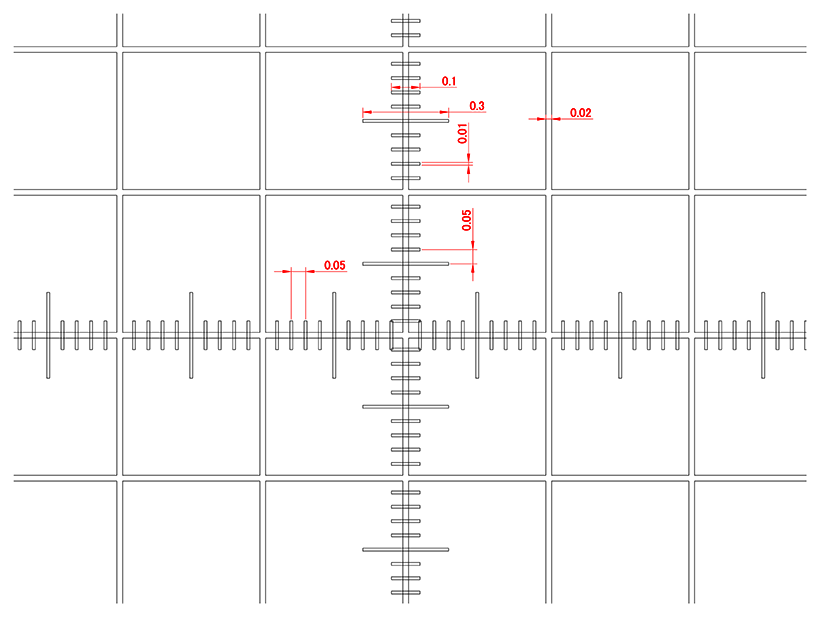

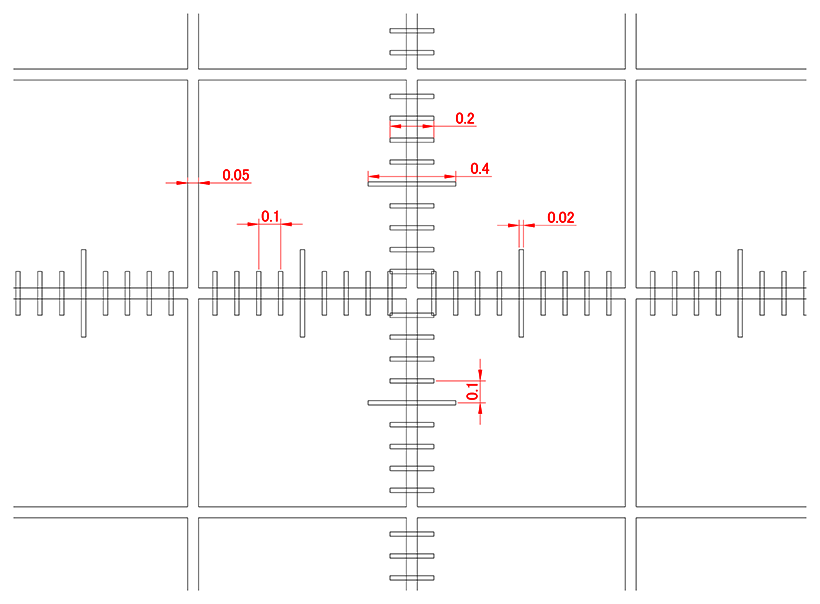

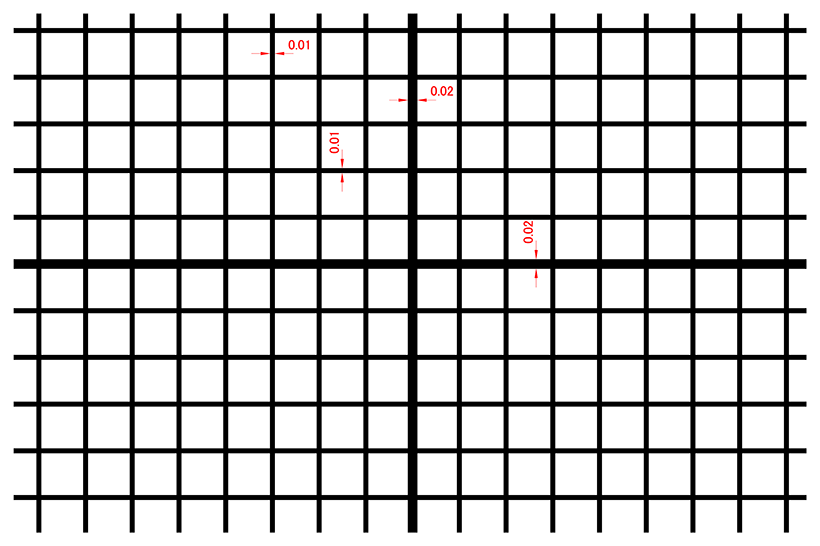

Partial Enlarged | Partial Enlarged | Partial Enlarged | Partial Enlarged |
• In case of a calibration certificate is requested, the item will be measured (10 points) and inspected by JQA (Japan Quality Assurance Organization), and the certificate issued by JQA will be with A2LA (American Association for Laboratory Accreditation) symbol.
